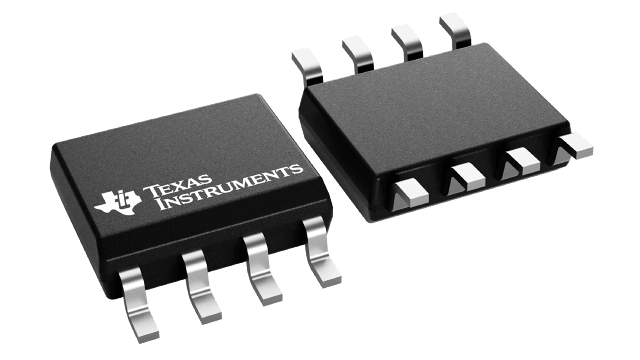

LM4808MX/NOPB | SOIC-8 | 耳机放大器 | TI

• WSON, VSSOP, and SOIC Surface Mount Packaging
• Switch On/Off Click Suppression
• Excellent Power Supply Ripple Rejection
• Unity-Gain Stable
• Minimum External Components

• THD+N at 1kHz at 105mW Continuous Average Output Power Into 16Ω 0.1 % (typ)
• THD+N at 1kHz at 70mW Continuous Average Output Power Into 32Ω 0.1 % (typ)
• Output Power at 0.1% THD+N at 1kHz Into 32Ω 70 mW (typ)

The LM4808 is a dual audio power amplifier capable of delivering 105mW per channel of continuous average power into a 16Ω load with 0.1% (THD+N) from a 5V power supply.

Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the LM4808 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems.

The unity-gain stable LM4808 can be configured by external gain-setting resistors.
